Xin'an Precision Works–Advantages of Vacuum Casting Services
We are equipped with 2 sets of vacuum casting machines and 2 industrial ovens. The maximum internal dimension of each oven is 1200×800×500 mm. Our team consists of 3 senior technicians with over 10 years of experience, specializing in the production of intricate soft rubber parts, plastic enclosures and mechanical components.
We are capable of replicating materials including ABS, PC, Nylon, POM and rubber. Custom formulations such as ABS+PC blends, glass fiber reinforcement and UL94 V0 flame retardant modification are available to enhance product rigidity and dimensional stability. Our products comply with the GB/T1804-M tolerance standard: the shrinkage rate is controlled within ±0.3% and the distortion rate below 98% for parts up to 200 mm; for parts up to 300 mm, the shrinkage rate is ±0.5% and the distortion rate is kept under 90%. All finished products are bubble-free. Full inspection and assembly testing are conducted prior to delivery to eliminate fitting issues. We also provide a full range of post-processing services, including sandblasting, painting, electroplating, screen printing, polishing and light transmission treatment.
Overmolding for Silicone Mold Vacuum Casting
We also offer integrated vacuum casting overmolding services, supporting structures such as hard plastic over soft rubber, plastic over silicone, and plastic with pre-embedded metal inserts. Using both one-shot and secondary overmolding processes, we can adjust the soft rubber hardness from Shore A30 to A90 to meet specific requirements. The finished parts feature strong interlayer bonding and precise texture reproduction.
With no need for costly steel mold tooling, our overmolding solution provides excellent cost performance and fast lead times for low-volume production. All processes are completed in-house to ensure reliable, one-stop delivery.
Vacuum Casting Service Advantages of Xin’an Precision
We provide a one-stop vacuum casting service. Our engineers offer free one-on-one drawing reviews, process planning and quotation. We also optimize product structures to mitigate potential risks upfront, with free rework for defective parts. Quotations are provided within 8 hours, with lead times ranging from 3 to 15 days.

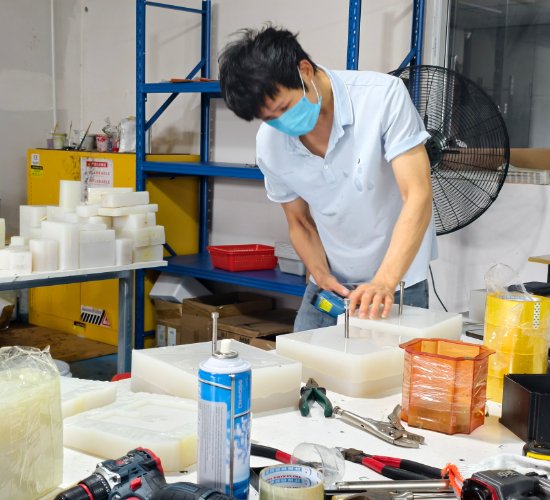

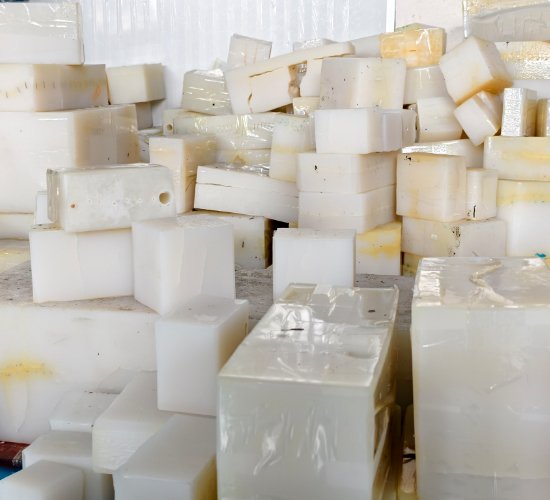

The entire production process is completed in-house, from prototype verification, silicone mold making, and part forming, to finishing, surface treatment, quality inspection and packaging, ensuring reliable quality and delivery schedules.
This process is ideal for low-volume production (10–500 pieces, where cost-effectiveness is highest) of medical components, automotive parts, smart home enclosures and more. Compared with steel mold injection molding, our solution delivers over 60% cost savings and 80% shorter lead times.
Flexible Thin & Complex & Clear PC/PU Parts | (Vacuum Casting)
At Xin’an Precision, we adopt precision vacuum degassing and temperature-controlled curing processes, combined with custom mold design and anti-tearing demolding solutions specifically for complex-shaped soft rubber parts. This effectively eliminates common issues such as shrinkage, warpage, flash, and blooming.
Our process achieves a minimum wall thickness of 0.8 mm with uniform wall distribution, minimal deformation, and stable elasticity. Soft rubber parts can be produced in a hardness range of Shore A30 to A90.

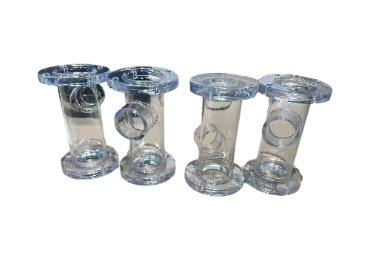

For transparent parts, custom colors can be achieved by adding colorants. The light transmittance of standard transparent parts reaches up to 80%, while our PC transparent parts achieve up to 92% light transmittance. Using high-purity imported raw materials, dual-stage degassing, dust-free production, and precision mold surface treatment, we eliminate defects such as air bubbles, water ripples, yellowing, surface scratches, and poor clarity. We can produce full-transparent, semi-transparent, frosted, and partial light transmission effects with smooth, clear surfaces that rival the quality of injection-molded parts.

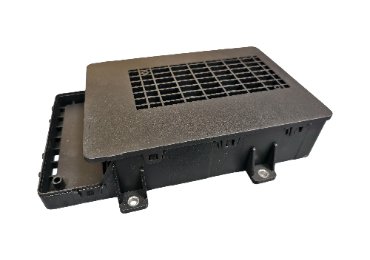

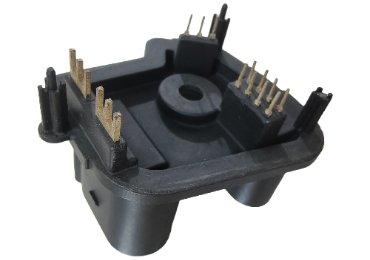

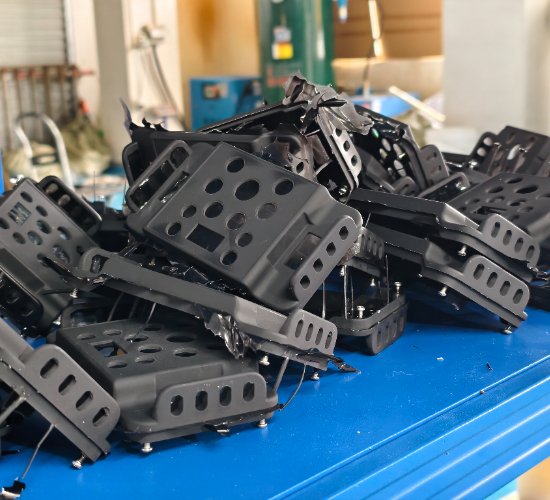

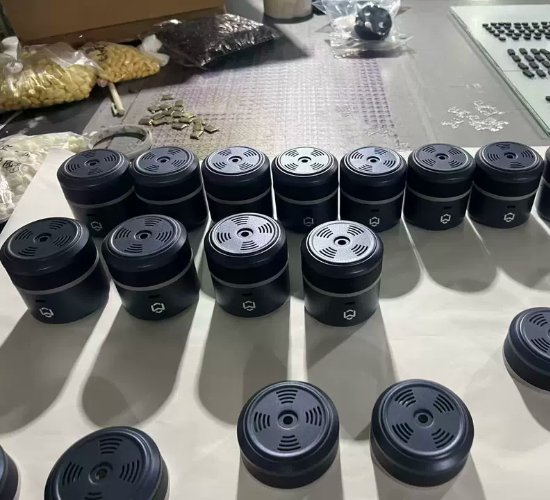

Vacuum Casting Products Showcase
Our vacuum casting process can replicate sample textures perfectly and supports various surface finishes with common materials like PU, epoxy resin and ABS. vacuum casting service caters to multiple industries, including electronics, automotive, medical devices and consumer goods.
XAP Precision: Finishing & Materials Capabilities For Vacuum Casting
- Common Materials for Silicone Mold Casting
- Full Post-Processing Comparison Chart for Vacuum Casted Products
- Texture Effect Comparison Chart for Vacuum Casting
| Process Category | Specific Process | Core Process Description | Typical Application Scenarios |
| Basic Trimming & Polishing | Flash & Gate Removal | Using professional blades or utility knives to precisely trim parting lines, gate residues, and flash | Universal base process for all vacuum cast parts, including housings, buttons, and structural components |
| Multi-stage Sanding | Coarse sanding (180#~400# grit) to remove tool marks and pits; fine sanding (800#~2000# grit) to prepare matte or semi-gloss surfaces | All parts requiring subsequent painting or polishing, such as housings, panels, and buttons | |
| Ultrasonic Deburring + Hand Finishing | Ultrasonic equipment removes micro-burrs, complemented by experienced craftsmen for dead-angle finishing | Small buttons, complex-shaped parts, precision structural components, arcade buttons | |
| Surface Polishing & Sandblasting | Matte Finish Treatment | Fine sanding + matte clear coat to achieve low-gloss, non-reflective matte texture | Instrument panels, small appliance housings, high-end consumer electronics |
| High Gloss Mirror Polishing | Progressive sanding + polishing wheel/buff compound to achieve mirror-like high gloss | Transparent buttons, decorative covers, viewports, high-end cosmetic parts | |
| Tactile Matte Sandblasting | Dry fine sandblasting simulating injection-molded grain texture for a smooth, non-slip feel | Button anti-slip surfaces, controller grips, handheld device housings | |
| Spray Painting & Coating | Single-Component Solid Color Painting | Conventional color spraying (red, blue, black, white) with uniform color and strong adhesion | Arcade buttons, general housings, structural components, non-cosmetic parts |
| PU Rubber (Soft Touch) Coating | Creates a soft, rubbery matte surface with excellent grip and comfort | Buttons, controller grips, handheld device anti-slip areas, arcade buttons (preferred) | |
| UV Clear Coat Painting | High gloss, scratch-resistant, and alcohol-resistant coating with excellent durability | High-gloss cosmetic parts, transparent components, wear-resistant panels/housings | |
| Semi-Gloss / Full Matte Coating | Precisely controls surface sheen to replicate the matte texture of original injection-molded parts | Automotive interior parts, instrument panels, high-end housings, injection-molded lookalike parts | |
| Special Effect Paint | Transparent paint, pearl paint, and metallic paint to simulate aluminum and electroplated finishes | Decorative parts, high-end cosmetic parts, metal-like housings, knobs/buttons | |
| Logo & Marking Printing | Screen Printing | Suitable for flat/large curved surfaces; prints clear logos, text, and patterns with strong adhesion | Exterior housings, flat buttons, large decorative parts, instrument panels |
| Pad Printing | Ideal for spherical, curved, and complex parts; prints small characters and fine logos without blurring | Spherical arcade buttons, curved buttons, complex small parts, knob markings | |
| Hot Stamping / Foil Stamping (Gold/Silver) | Heat transfer process for gold/silver logos and text; premium look, durable and wear-resistant | High-end decorative parts, branded logo housings, luxury panels, art pieces | |
| Metal-Like Appearance Treatments | Vacuum Metallization (UV Plating) | Creates thin electroplated metal finishes (nickel, chrome, gold) in a vacuum environment; alternative to traditional electroplating | Metallic-looking buttons, trim strips, high-end cosmetic parts, faux metal housings |
| Electroplating | Using electroplatable PU materials to achieve traditional bright chrome and metallic finishes with strong adhesion | Full-metal buttons, metal-like cosmetic parts, high-end decorative parts, knobs | |
| Anodized Finish Simulation | Special spray coating to replicate the matte black and silver sand texture of aluminum anodizing | Aluminum-like housings, equipment panels, metallic-finish enclosures, industrial parts | |
| Machining & Assembly | Drilling / Reaming / Tapping | Precision machining to create mounting holes, snap features, and threaded holes with tight tolerances | Button LED pillar holes, housing assembly holes, structural component screw holes |
| Heated Brass Nut Insertion | Thermal insertion process to securely embed brass nuts into plastic screw locations; strong, non-loosening, and reusable | Housing screw mounting points, structural assembly points, parts requiring repeated assembly/disassembly | |
| Final Assembly | Complete assembly of springs, conductive rubber, LED lights, and wiring terminals; delivers fully finished products | Arcade button assembly, functional structural components, electronic component assembly | |
| Defect Repair & Rework | Pinhole / Sink Mark Repair | Filling pinholes and sink marks with putty, sanding smooth, and re-spraying to eliminate repair traces | Repair of surface defects on cosmetic and painted parts to prevent scrapping |
| Color Matching Rework | Re-mixing paint and re-spraying to correct color inconsistencies; ensures uniform color matching with customer specifications | Color correction on painted and cosmetic parts to ensure batch-to-batch consistency |
| Process Category | Specific Process | Core Process Description | Typical Application Scenarios |
| Basic Trimming & Polishing | Flash & Gate Removal | Using professional blades or utility knives to precisely trim parting lines, gate residues, and flash | Universal base process for all vacuum cast parts, including housings, buttons, and structural components |
| Multi-stage Sanding | Coarse sanding (180#~400# grit) to remove tool marks and pits; fine sanding (800#~2000# grit) to prepare matte or semi-gloss surfaces | All parts requiring subsequent painting or polishing, such as housings, panels, and buttons | |
| Ultrasonic Deburring + Hand Finishing | Ultrasonic equipment removes micro-burrs, complemented by experienced craftsmen for dead-angle finishing | Small buttons, complex-shaped parts, precision structural components, arcade buttons | |
| Surface Polishing & Sandblasting | Matte Finish Treatment | Fine sanding + matte clear coat to achieve low-gloss, non-reflective matte texture | Instrument panels, small appliance housings, high-end consumer electronics |
| High Gloss Mirror Polishing | Progressive sanding + polishing wheel/buff compound to achieve mirror-like high gloss | Transparent buttons, decorative covers, viewports, high-end cosmetic parts | |
| Tactile Matte Sandblasting | Dry fine sandblasting simulating injection-molded grain texture for a smooth, non-slip feel | Button anti-slip surfaces, controller grips, handheld device housings | |
| Spray Painting & Coating | Single-Component Solid Color Painting | Conventional color spraying (red, blue, black, white) with uniform color and strong adhesion | Arcade buttons, general housings, structural components, non-cosmetic parts |
| PU Rubber (Soft Touch) Coating | Creates a soft, rubbery matte surface with excellent grip and comfort | Buttons, controller grips, handheld device anti-slip areas, arcade buttons (preferred) | |
| UV Clear Coat Painting | High gloss, scratch-resistant, and alcohol-resistant coating with excellent durability | High-gloss cosmetic parts, transparent components, wear-resistant panels/housings | |
| Semi-Gloss / Full Matte Coating | Precisely controls surface sheen to replicate the matte texture of original injection-molded parts | Automotive interior parts, instrument panels, high-end housings, injection-molded lookalike parts | |
| Special Effect Paint | Transparent paint, pearl paint, and metallic paint to simulate aluminum and electroplated finishes | Decorative parts, high-end cosmetic parts, metal-like housings, knobs/buttons | |
| Logo & Marking Printing | Screen Printing | Suitable for flat/large curved surfaces; prints clear logos, text, and patterns with strong adhesion | Exterior housings, flat buttons, large decorative parts, instrument panels |
| Pad Printing | Ideal for spherical, curved, and complex parts; prints small characters and fine logos without blurring | Spherical arcade buttons, curved buttons, complex small parts, knob markings | |
| Hot Stamping / Foil Stamping (Gold/Silver) | Heat transfer process for gold/silver logos and text; premium look, durable and wear-resistant | High-end decorative parts, branded logo housings, luxury panels, art pieces | |
| Metal-Like Appearance Treatments | Vacuum Metallization (UV Plating) | Creates thin electroplated metal finishes (nickel, chrome, gold) in a vacuum environment; alternative to traditional electroplating | Metallic-looking buttons, trim strips, high-end cosmetic parts, faux metal housings |
| Electroplating | Using electroplatable PU materials to achieve traditional bright chrome and metallic finishes with strong adhesion | Full-metal buttons, metal-like cosmetic parts, high-end decorative parts, knobs | |
| Anodized Finish Simulation | Special spray coating to replicate the matte black and silver sand texture of aluminum anodizing | Aluminum-like housings, equipment panels, metallic-finish enclosures, industrial parts | |
| Machining & Assembly | Drilling / Reaming / Tapping | Precision machining to create mounting holes, snap features, and threaded holes with tight tolerances | Button LED pillar holes, housing assembly holes, structural component screw holes |
| Heated Brass Nut Insertion | Thermal insertion process to securely embed brass nuts into plastic screw locations; strong, non-loosening, and reusable | Housing screw mounting points, structural assembly points, parts requiring repeated assembly/disassembly | |
| Final Assembly | Complete assembly of springs, conductive rubber, LED lights, and wiring terminals; delivers fully finished products | Arcade button assembly, functional structural components, electronic component assembly | |
| Defect Repair & Rework | Pinhole / Sink Mark Repair | Filling pinholes and sink marks with putty, sanding smooth, and re-spraying to eliminate repair traces | Repair of surface defects on cosmetic and painted parts to prevent scrapping |
| Color Matching Rework | Re-mixing paint and re-spraying to correct color inconsistencies; ensures uniform color matching with customer specifications | Color correction on painted and cosmetic parts to ensure batch-to-batch consistency |
| Texture Category | Specific Texture | Key Features | Typical Applications |
| Common Leather Grain Class | Fine / Coarse Leather Grain | Matches injection molding ST100~ST600 full series; fine/coarse texture options available with high replication accuracy | Automotive interiors, handle housings, game console / arcade cabinets, instrument enclosures |
| (Most Widely Used for Plastic Parts) | |||
| Lychee / Matte Leather Grain | Lychee-shaped or finely matte surface texture with excellent anti-slip properties and comfortable touch | Grips, non-slip key surfaces, handheld device enclosures | |
| Fine Matte Leather | Low-gloss fine leather grain with non-reflective surface, premium feel, and good scratch resistance | Small appliance housings, instrument panels, high-end consumer electronics enclosures | |
| Gloss / Metal Simulation Class | High Gloss Mirror Finish | Ultra-smooth surface achieving mirror-level reflectivity; 1:1 replication directly from polished master parts | Transparent buttons, decorative covers, viewports, high-end appearance parts |
| (For Metal-Like Appearance Parts) | |||
| Straight / Circular Concentric Brushed Finish | Restores metal brushed texture with customizable pattern width and spacing for strong metallic appearance | Knobs, metallic-looking buttons, trim strips, metal-like appearance parts | |
| Matte Frost / Fine Sand Blast | Uniform fine sand texture with low gloss and anti-glare properties; adjustable grit size available | Matte housings, equipment panels, non-slip appearance parts | |
| Particle / Embossed Texture Class | Raised Dots / Anti-Slip Bumps | Regular or irregular raised dots with excellent anti-slip performance; customizable dot size and density | Game console / arcade key anti-slip particles, controller grip zones, handheld device handles |
| (Functional Textures) | |||
| Honeycomb / Grid Texture | Regular open or embossed grid structure balancing breathability and structural strength; customizable pattern size | Heat-dissipating covers, ventilation panels, equipment protective housings, decorative parts | |
| Pitting / Sandblast Texture | Simulates aluminum sandblast effect with uniform fine matte pitting and strong metallic appearance; adjustable grit size | Metal-like enclosures, equipment panels, decorative parts | |
| Special Precision Texture Class | Wood / Stone Grain | 1:1 replication of natural wood and marble textures with clear layering and high fidelity | Artworks, decorative ornaments, furniture components, high-end enclosures |
| (Custom Decorative Textures) | |||
| Carbon Fiber Weave | Restores carbon fiber woven texture with premium feel; customizable weave pattern and density | Carbon fiber appearance housings, sports equipment, high-end decorative parts | |
| Engraved / Embossed Logos & Characters | Precisely replicates logo recesses, embossed characters, and engraved patterns with high detail and clean edges | Branded logo housings, engraved decorative parts, custom panels | |
| Flocked / Water Ripple Texture | Simulates soft flocked feel and natural water ripples; highly customizable with strong decorative effect | Custom decorative parts, artworks, high-end appearance parts |
Send Inquiry
Why Choose Our Vacuum Casting Services?
We have over ten years of industry experience, delivering reliable precision and stable quality. We handle the entire production process in-house, from mold making to finishing. We offer fast quotation, short lead times and cost-effective solutions ideal for low-volume orders. We also provide free design assessment and rework for defective items to fully protect your interests.
Normally, one mold can make 20 to 30 items. The exact quantity depends on product structure, material and surface treatment.
It is ideal for prototyping and small-batch orders, not for large-scale mass production.
Yes. We can copy original textures precisely, and also provide custom colors, matte or glossy finishes.
We provide trimming, polishing, painting, assembly and other finishing work as required.
Simple orders take 3 to 5 days. Delivery will take longer for complex parts or special processes.
