XAP Precision: Steel CNC Machining Solutions with 20+ Years Expertise
XAP Precision brings over 20 years of specialized experience in steel CNC machining, operating under a rigorous ISO 9001 quality management system. We provide comprehensive steel parts machiningsolutions from design to post-processing, utilizing high-precision equipment including Haas 4SS machining centers (±0.003mm accuracy) and Tsugami Swiss lathes (±0.005mm concentricity). Our steel component machiningcapabilities cover various materials including stainless steel, carbon steel, tool steel, and alloy steels. We specialize in manufacturing complex steel machined componentssuch as medical precision shafts, aerospace structural parts, automotive engine flanges, and industrial gears, ensuring superior material strength and dimensional consistency for high-reliability applications in medical and aerospace industries.
XAP Precision: High-Precision Steel CNC Machining Advantages
Our 3/4/5-axis CNC equipment specializes in steel CNC machiningof complex components such as impellers, engine turbines, stainless steel valve bodies, and carbon steel pump housings. The 5-axis simultaneous steel parts machiningtechnology achieves ±0.005mm accuracy in a single setup, eliminating repositioning errors. Through high-pressure cooling and dedicated carbide tools, we effectively control thermal deformation and hardening during stainless steel and tool steel machining, making it ideal for hydraulic system components and energy equipment core structures requiring stringent surface finish (Ra 0.8μm) and precision tolerance control. For your steel component machining needs, choose XAP Precision for reliable solutions.
XAP Precision: Large-Scale Steel CNC Machining Solutions
For large-scale steel CNC machining requirements, XAP Precision utilizes gantry machining centers with a worktable range of 3500×400×450mm and ±0.01mm accuracy. These support large steel part machining for heavy machinery components, ship propeller housings, automotive frames, and carbon steel welding bases. The equipment rigidity and layered cutting processes ensure stability in large-scale steel component machining, while integrated roughing and finishing of stainless steel and high-strength alloy steel reduce errors from repositioning.
XAP Precision Advantages: Lathe-Based Steel CNC Machining Solutions

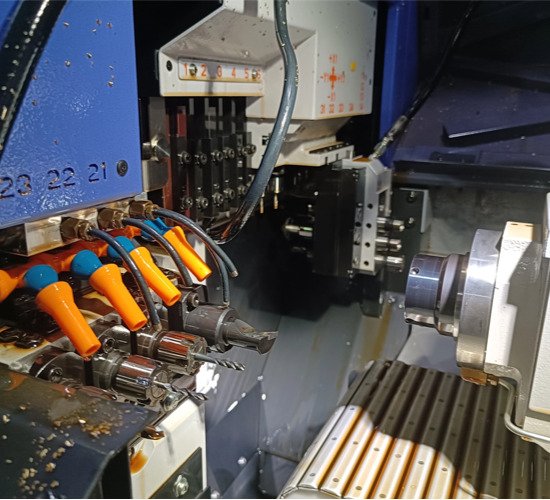

XAP Precision’s CNC lathes and Swiss-type automatic lathes specialize in steel CNC machiningfor rotational components. The Swiss-type lathes handle slender shafts (≤21mm diameter) such as medical guide wires and automotive shift rods, achieving ≤0.005mm concentricity in precision steel part machining. Our turn-mill compound equipment (Haman 46-type) enables integrated turning, milling, and drilling for workpieces up to 200×280mm with ±0.005mm accuracy, significantly boosting efficiency for steel component machiningof bearing sleeves, transmission shafts, and hydraulic cylinders.
For challenging alloy steel and hardened steel machining, we employ CBN tools and temperature-controlled cooling to ensure superior surface integrity and wear resistance in finished steel parts.
XAP Precision: Steel CNC Machining Services
Professional steel CNC machining solutions for precision parts manufacturing. We accept 1-piece steel part machining orders with 7-day prototype delivery. Our flexible small-batch steel component machining accelerates product development cycles and reduces time-to-market.
Finishing & Materials Capabilities for Steel CNC Machining Service
- Post-processing/Finishing Service For Steel CNC Machining Service
- Material Classification For Steel CNC Machining Service
| Process Category | Specific Processes | Key Characteristics |
| Mechanical Treatment | Polishing | Smooth surface, mirror-like finish |
| Sand Blasting | Uniform matte texture, improved adhesion | |
| Brushing | Consistent linear grain, scratch resistance | |
| Buffing | High-gloss finish, deburring capability | |
| Chemical Treatment | Anodizing | Enhanced corrosion/wear resistance |
| Electroplating | Metallic coating, improved conductivity | |
| Surface Etching | Precise pattern creation, anti-slip properties | |
| Coating Processes | UV Coating | Hard protective layer, scratch resistance |
| Overmolding | Soft-touch surface, impact absorption | |
| Hot Stamping | Metallic foil transfer, decorative effect | |
| Heat Transfer Printing | Complex pattern application, durability | |
| Marking & Printing | Screen Printing | Permanent graphic application |
| Laser Engraving | Precise permanent marking, high resolution | |
| Leather Grain | Simulated leather texture, aesthetic appeal |
| Material Category | Specific Type / Common Grade | Main Characteristics |
| Carbon Steel | Low Carbon Steel(Q235, 1018) | Low strength, good toughness, easy to weld, low cost |
| Medium Carbon Steel(45#, 1045) | Moderate strength and hardness, balanced comprehensive properties | |
| High Carbon Steel(T8, T10) | High hardness, good wear resistance, but brittle | |
| Alloy Steel | Chromium-Molybdenum Steel(4140, 42CrMo) | High strength, high toughness, good hardenability |
| Stainless Steel | Austenitic Stainless Steel(304, 316) | Excellent corrosion resistance, non-magnetic |
| Martensitic Stainless Steel(420, 440C) | Can be heat-treated to achieve high hardness, magnetic | |
| Ferritic Stainless Steel(430) | Average corrosion resistance, magnetic, cannot be strengthened by heat treatment | |
| Tool Steel | Cold Work Tool Steel(D2, A2) | High hardness, high wear resistance, used for cold forming |
| Hot Work Tool Steel(H13) | Retains hardness at high temperatures, resistant to thermal fatigue | |
| Plastic Mold Steel(P20) | Supplied in pre-hardened state, requires no heat treatment after machining |
Send Inquiry
XAP Precision: Inspection capability matrix
| Inspection Item | Equipment Accuracy | Standard Reference |
| Dimensional Inspection | CMM ±0.002mm | ISO 2768-m |
| Hardness Testing | Rockwell/Brinell/Vickers hardness testers | ASTM E18/E10/E92 |
| NDT Inspection | Ultrasonic/magnetic particle flaw detectors | ASME V/ASTM E1444 |
XAP Precision Steel CNC Machining is built on core advantages including high-rigidity equipment configurations, expertise in specialty steels, precision machining capabilities, and intelligent quality traceability. Through industry-specific solutions, an optimized process system, and continuous technological innovation, we provide customers with one-stop steel parts manufacturing services ranging from material selection to surface treatment. We have established technological barriers in heavy-duty fields such as mold manufacturing, construction machinery, and energy equipment.
Validation Data:
- Cumulative steel parts delivered: 5 million+ pieces
- Customer satisfaction: 98.5%
- On-time delivery rate: 99.3%
- Quality pass rate: 99.6%
Decision-making reference for choosing us:
✅ Involves high-hardness materials such as hardened steel (HRC > 45)
✅ Requires precision levels above ±0.01mm
✅ Needs heavy-duty or large-scale part machining
✅ Pursues batch production stability (CPK ≥ 1.67)
✅ Requires integrated heat treatment and machining coordination solutions
✅ Emphasizes continuous cost reduction through process optimization
Customers provide STEP/X_T/IGES drawings for technical review by our steel CNC machining engineers.
We provide transparent quotations based on material specs, precision needs, and order quantity after drawing confirmation for steel parts machining.
Upon quote approval, customers sign agreements and production begins immediately for steel component machining projects.
Our 5-axis steel CNC machining starts after payment, with protective packaging and real-time logistics tracking.
We offer 30-day technical support to ensure machined steel parts meet application requirements.
